Heat Treatment Furnace

  • Brand Name: Luwei
  • Model: Heat Treatment Furnace KSS-1600
  • Max.Temperature: 1600°C
  • Working Temperature: 1500°C
  • Furnace Chamber Size: 1200*1200*1200MM
  • Temperature Controller: 1200*1200*1200MM
  • Control Accuray: ± 1°C
  • Heating Element: MoSi2 heaters
  • Thermocouple: B type
  • Chamber Material: High purity Ceramic fiber
Send Message Get Price
Description of Heat Treatment Furnace

Heat Treatment Furnace chamber is high purity alumina fiber insulation and Morgan materials brick, and save you money when treating large volumes of material per hour with exceptional uniformity and low maintenance.

The lifting and dropping of the Heat Treatment Furnace cover adopt with electromotor to drive the lifter of worm wheel, worm, and screw mandrel to perform. The airproof of furnace cover and retort adopt appropriativesealing ring and impacted structure. There are the vent and explosion door on the Heat Treatment Furnace cover.

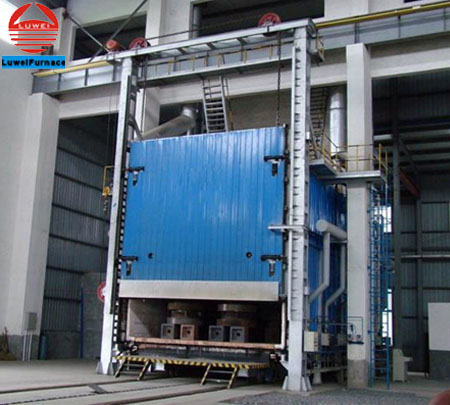

Heat Treatment Furnace

Features of Heat Treatment Furnace

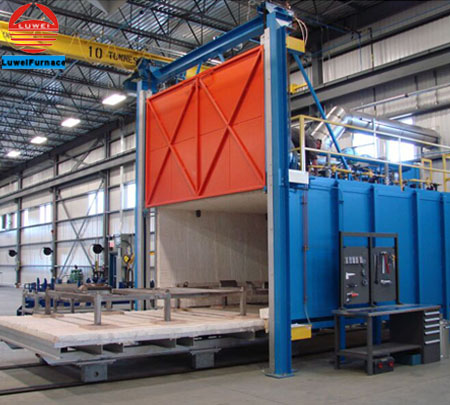

The Heat Treatment Furnace from Luoyang Luwei include many models like Pottery heat treatment sintering furnace, Trolley heat treatment Furnace, Car Bottom furnace, Car Bottom Hearth furnace and drop bottom loading furnace, etc.

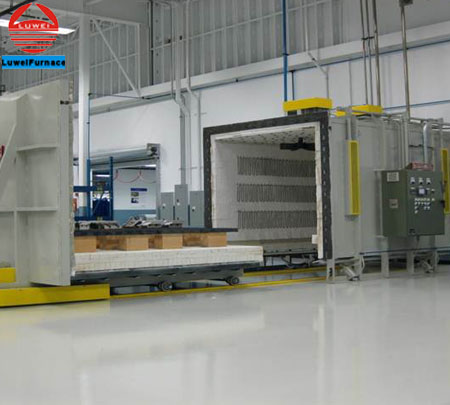

Heat Treatment Furnace

Technical Data of Heat Treatment Furnace

The temperature Category: 1200°C 1400°C 1600°C 1700°C 1800°C.

Technical Specifications of Heat Treatment Furnace

Chamber size

1200x1200x1200mm (Width * Height * Depth) (8 Liter)

Max. temperature

1600°C (<2hour)

Working temperature

1500°C

Temperature controlling

PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor.

16 programmable segments for precise control of heating rate, cooling rate and dwell time.

Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.

Over temperature protection and alarm allows for operation without attendant.

Temperature accuracy

±1°C

Temperature Uniformity

±5°C

Heating rate

0-15°C/min

Thermocouple

S type with 99.7% purity Alumina tube

Heating element

MoSi2 heating elements

Furnace Chamber

Three layers of ceramic fiber insulation materials

Furnace structure

Double layer steel casing with dual cooling fan, surface temperature below 60°C

Furnace door

Front-side open

Power cutting off when furnace door open

Working voltage

220V or 380V, 50HZ or 60HZ

Rated power

30 KW

N.W/G.W

1200KG/1800KG

Stander chamber size (mm)customize

500*300*200 500*400*400 500*500*500 600*500*500 800*800*800 1000*800*800 1000*1000*1000 1200*1200*1200 1500*1000*1000
