Annealing Furnace

  • Brand Name: Luwei
  • Model: KSS-1400 Annealing Furnace
  • Max.Temperature: 1400°C
  • Working Temperature: 1300°C
  • Furnace Chamber Size: 1800*800*800MM
  • Temperature Controller: PID automatic control via SCR
  • Control Accuray: ± 1°C
  • Heating Element: SiC heaters
  • Thermocouple: S type
  • Chamber Material: High quality heat resistant alumina ceramic plates with 50mm thick and mullite bricks
Send Message Get Price
Description of Annealing Furnace

Annealing Furnace is a process used in semiconductor device fabrication which consist of heating multiple semiconductor wafers in order to affect their electrical properties. Heat treatments are designed for different effects. Annealing Furnaces may be integrated into other furnace processing steps, such as oxidations, or may be processed on their own. Furnace anneals are performed by equipment especially built to heat semiconductor wafers. Furnaces are capable of processing lots of wafers at a time but each process can last between several hours and a day.

Annealing Furnace

Annealing Furance designs can be stationary, moving or continous, are a few examples. Annealing is applied to both ferrous and non-ferrous metals, and is intended to reduce the strength and hardness of the product while increasing the ductility. Annealing Furnace features heating elements in ceramic fibre insulation, providing a maximum temperature of 1100°C in the furnace’s vacuum tight chamber.

Annealing Furnace

Features of Annealing Furnace

An Annealing Furnace is a piece of equipment used to heat a material at very high temperatures, to change its hardness and strength properties. Annealing is commonly associated with the manufacture of steel, to relieve internal stresses that may lead to failure in service and to produce a more uniform, or homogeneous, internal structure. 1200°C degree 1600°C degree metal or ceramics heat treatment furnace Annealing Furnace is welded by steel and profiled steel; furnace chamber is ceramic fiber and high quality electric resistance wire/SiC heaters, which can save 40% energy than brick furnace chamber. Car Bottom Furnace is mainly used for annealing, normalizing and stress relieving of bars and tubes, forgings, large weldments and castings.

Annealing Furnace

Technical Specifications of Annealing Furnace

Furnace construction

Energy,furnace chamber used Morgan materials imported fibers, high purity ceramicfiber insulation( energy saving 40% and weight lighter about 50% than old furnace).

Big yield capacity and high productivity, especially used for heating treatment of small or medium products.

Double layers carbon steel casing with fan cooling to ensure the surface of furnace below 50°C

Chamber size

1800(L)*800(W)*800(H)

Max. temperature

1400°C (<2hour)

Working temperature

RT=1300°C ( >5 hrs)

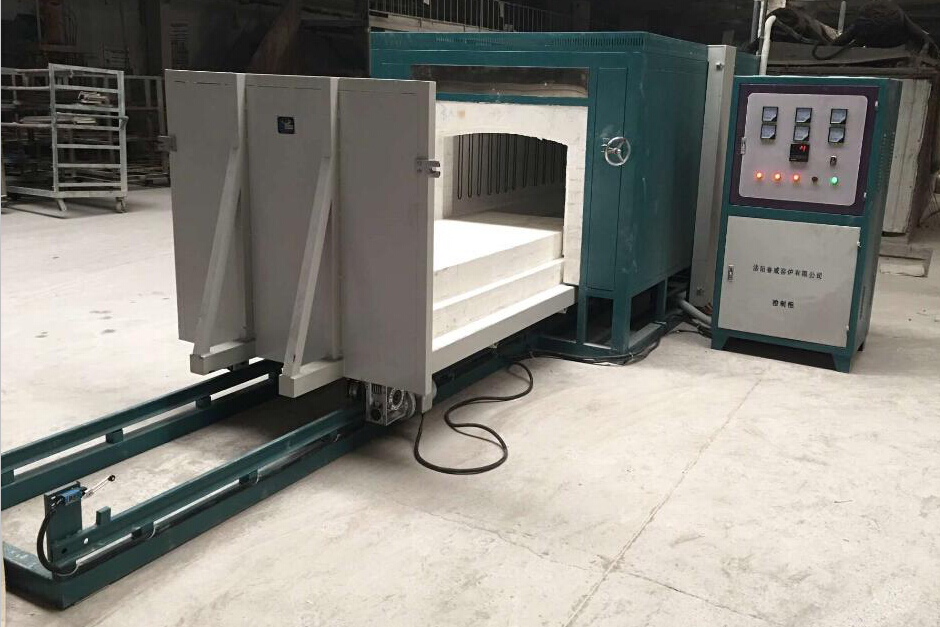

Kiln open mode:

Front loading trolley kiln with manual operation

Temperature controlling

30 segments programable and PID auto control

Heating elements:

High performance SIC heater with three sides or four sids

Thermocouple:

Long Life S Type Thermocouple

Heating rate

0~20°C / min (suggestion =< 10°C)

Temperature accuracy

±1°C

Wok voltage:

AC220V/380V, 50/60Hz(or as your requirement)

Furnace temperature field uniformity

±1℃( according to the heating chamber size and can multi point temperature control)

Temperature controller :

SCR control, PID parameter self-setting function rapid temp compensation.

30 programmable segments for precise control

Built in protection for over-heated and broken thermal couple.

Large digital control panel for easy operation

Furnace chamber materials:

High quality heat resistant alumina ceramic plates with 50mm thick and mullite bricks

Heating power

80 KW

Net weight(Kgs):

2500kg

Warranty:

1 year limited warranty

Certificate:

CE certified

Optional items:

PC data recorder, Exhauster port, Over temperature controller
